IP67 rated aluminum die-cast enclosure battery charger

We are more than a charger supplier – we are your long-team trusted power solution partner!

Zhongyi’s Charger Product Range

The charger is compact, flexible, user-friendly, IP67 rated aluminum die-cast enclosure industrial chargers that optimally charge lead-acid (wet, AGM, gel) and lithium battery packs to provide the best performance for the intended application. Choosing the right battery charger can maximize uptime, improve product reliability, and reduce the total cost of ownership.

800W IP76 industrial on-board charger — 800W On-board Charger

800W IP67 industrial portable_charger — 800W Portable Charger

1200W IP67 industrial portable charger — 1200W Portable Charger

IP67 1200W industrial on-board charger — 1200W on-board Charger

IP67 1400W industrial portable charger — 1400W Portable Charger

1400W IP67 industrial on-board charger — 1400W Portable Charger

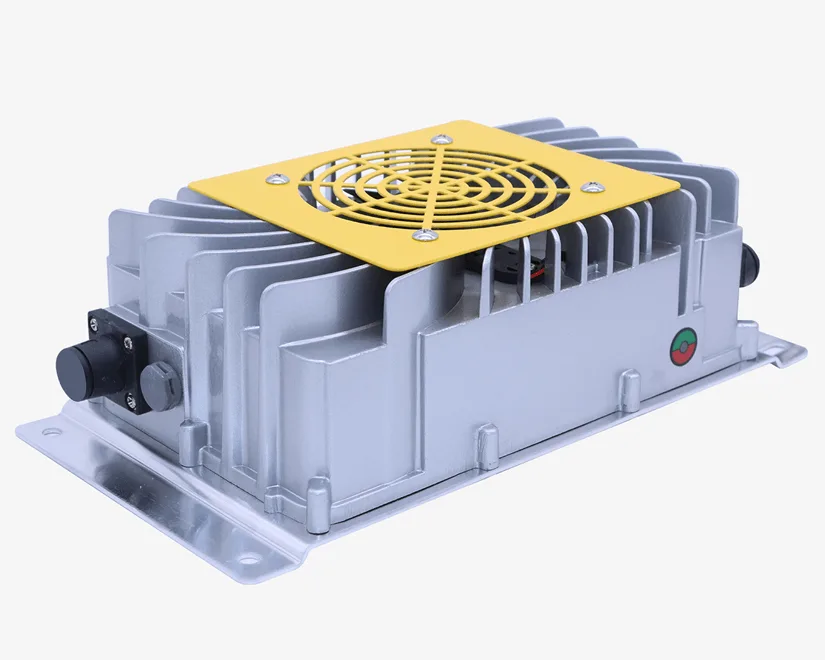

1500W IP67 industrial on-board charger — 1500W On-board Charger

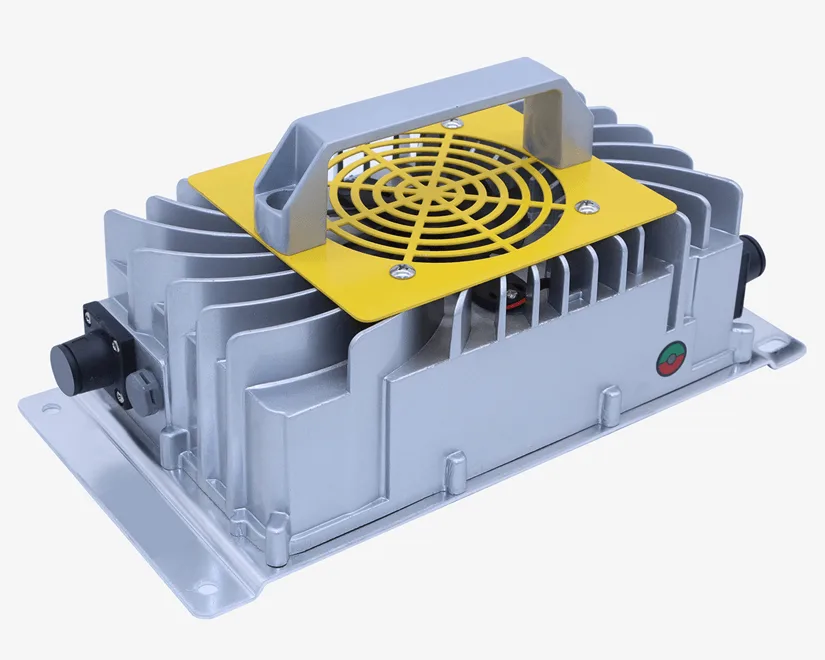

IP67 1500W industrial portable charger — 1500W Portable Charger

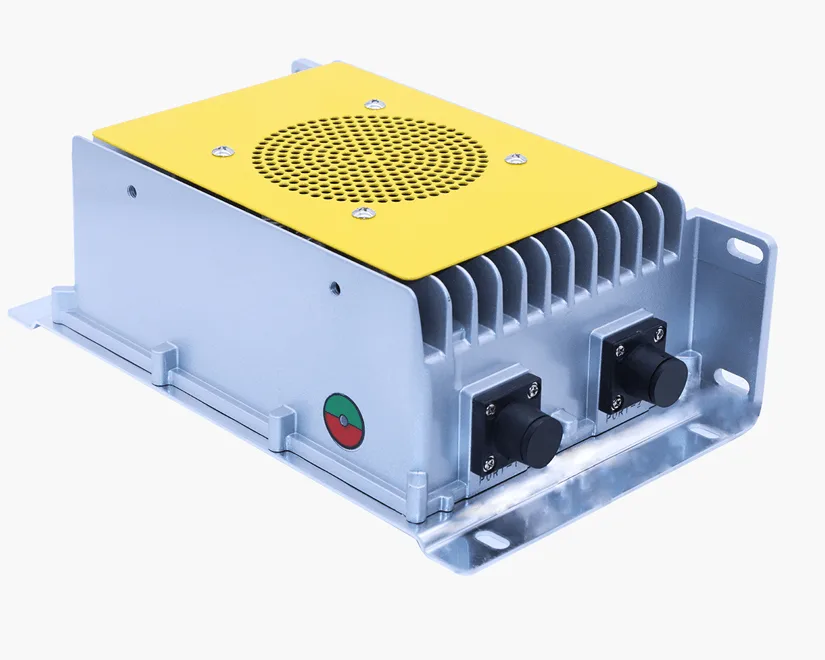

2000W IP67 industrial on-board charger — 2000W On-board charger

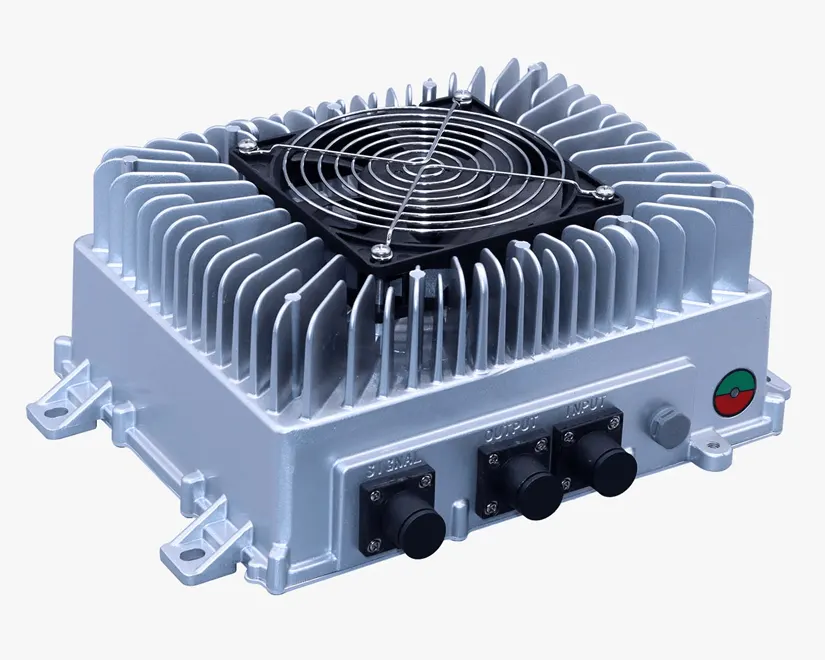

3300W IP67 industrial on-board charger — 3300W On-board Charger

IP67 3300W industrial portable charger — 3300W Portable Charger

Technical Specifications

Learn more about each product.

	24V Model	36V Model	48V Model	60V Model	72V Model
Max DC Output Power	800W	800W	800W	800W	800W
Max Output voltage	33.0V	49.5V	60.0V	82.5V	99.0V
Max DC Output Current	15A	15A	15A	12A	10A
AC Input Voltage Range	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC
Battery Type	Lead-Acid (Wet / AGM / Gel) & Lithium	Lead-Acid (Wet / AGM / Gel) & Lithium	Lead-Acid (Wet / AGM / Gel) & Lithium	Lead-Acid (Wet / AGM / Gel) & Lithium	Lead-Acid (Wet / AGM / Gel) & Lithium
Dimensions					190x140x74.5mm
Weight					2.2Kg
Cooling					natural air cooling
IP Protection					IP67
Efficiency					93% peak efficiency
Certifications					CE,FCC,KC,CB,RCM

	24V Model	36V Model	48V Model	60V Model	72V Model	84V Model
Max DC Output Power	1200W	1200W	1200W	1200W	1200W	1200W
Max Output voltage	33.0V	49.5V	66.0V	82.5V	99.0V	115.5V
Max DC Output Current	25A	25A	20A	20A	15A	12A
AC Input Voltage Range	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC
Battery Type	Lead-Acid (Wet / AGM / Gel), Lithium	Lead-Acid (Wet / AGM / Gel), Lithium	Lead-Acid (Wet / AGM / Gel), Lithium	Lead-Acid (Wet / AGM / Gel), Lithium	Lead-Acid (Wet / AGM / Gel), Lithium	Lead-Acid (Wet / AGM / Gel), Lithium
Dimensions						335x192x106mm
Cooling						natural air cooling
Weight						4.5Kg
IP Protection						IP67
Efficiency						93% peak efficiency
Certifications						CE,FCC,KC,CB,RCM

	48V Model	60V Model	72V Model
Max DC Output Power	1400W	1400W	1400W
Max Output voltage	66.0V	82.5V	99.0V
Max DC Output Current	20A	15A	15A
AC Input Voltage Range	90-264VAC	90-264VAC	90-264VAC
Battery Type	Lead-Acid (Wet / AGM / Gel) & Lithium	Lead-Acid (Wet / AGM / Gel) & Lithium	Lead-Acid (Wet / AGM / Gel) & Lithium
Dimensions			282x130x82mm
Weight			2.6Kg
Cooling			natural air cooling
IP Protection			IP67
Efficiency			93% peak efficiency
Certifications			CE,FCC,KC,CB,RCM

	24V Model	36V Model	48V Model	60V Model	72V Model
Max DC Output Power	1500W	1500W	1500W	1500W	1500W
Max Output voltage	33.0V	49.5V	66.0V	82.5V	99.0V
Max DC Output Current	30A	25A	25A	20A	18A
AC Input Voltage Range	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC
Battery Type	Lead-Acid (Wet / AGM / Gel) & Lithium	Lead-Acid (Wet / AGM / Gel) & Lithium	Lead-Acid (Wet / AGM / Gel) & Lithium	Lead-Acid (Wet / AGM / Gel) & Lithium	Lead-Acid (Wet / AGM / Gel) & Lithium
Dimensions					282x145x84mm
Weight					3.0Kg
Cooling					natural air cooling
IP Protection					IP67
Efficiency					93% peak efficiency
Certifications					CE,FCC,KC,CB,RCM

	24V Model	36V Model	48V Model	60V Model	72V Model
Max DC Output Power	2000W	2000W	2000W	2000W	2000W
Max Output voltage	33.0V	49.5V	66.0V	82.5V	99.0V
Max DC Output Current	30A	25A	25A	20A	18A
AC Input Voltage Range	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC
Battery Type	Lead-Acid (Wet / AGM / Gel) & Lithium	Lead-Acid (Wet / AGM / Gel) & Lithium	Lead-Acid (Wet / AGM / Gel) & Lithium	Lead-Acid (Wet / AGM / Gel) & Lithium	Lead-Acid (Wet / AGM / Gel) & Lithium
Dimensions					282x168x96mm
Weight					3.8Kg
Cooling					natural air cooling
IP Protection					IP67
Efficiency					93% peak efficiency
Certifications					CE,FCC,KC,CB,RCM

	48V Model	60V Model	72V Model	84V Model	96V Model	120V Model	144V Model	312V Model
Max DC Output Power	3300W	3300W	3300W	3300W	3300W	3300W	3300W	3300W
Max Output voltage	66.0V	82.5V	99.0V	116.0V	132.0V	165.0V	198.0V	440.0V
Max DC Output Current	42A	40A	40A	40A	32A	25A	23A	10A
AC Input Voltage Range	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC
Battery Type	Lead-Acid (Wet / AGM / Gel) & Lithium	Lead-Acid (Wet / AGM / Gel) & Lithium	Lead-Acid (Wet / AGM / Gel) & Lithium	Lead-Acid (Wet / AGM / Gel) & Lithium	Lead-Acid (Wet / AGM / Gel) & Lithium	Lead-Acid (Wet / AGM / Gel) & Lithium	Lead-Acid (Wet / AGM / Gel) & Lithium	Lead-Acid (Wet / AGM / Gel) & Lithium
Dimensions								294x210x111mm
Weight								6.2Kg
Cooling								natural air cooling
IP Protection								IP67
Efficiency								93% peak efficiency
Certificate								CE,FCC,KC,CB,RCM
